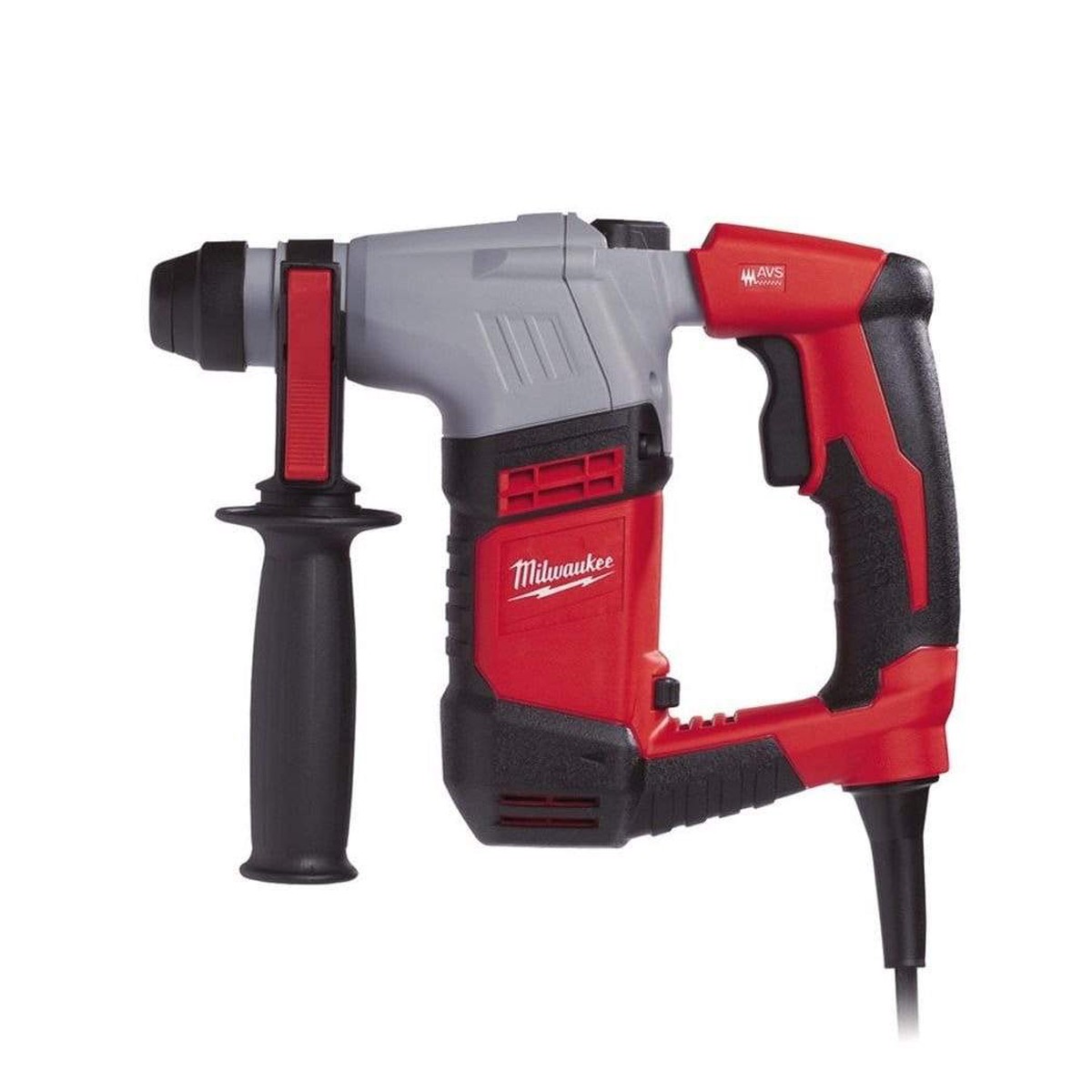

The Milwaukee PLH 20 delivers exceptional drilling control and performance in a compact, lightweight body. Weighing just 1.9 kg, this 620W SDS-Plus hammer drill combines optimized speed and a 2.0 J blow energy to offer superior results in concrete, wood, and steel. Its the ideal tool for overhead and fixings work, especially when precision and comfort are key.Designed with AVS (Anti-Vibration-System) and a user-focused airflow that directs debris away, it ensures a more comfortable and cleaner working experiencewhether you’re fixing electrical boxes or drilling through reinforced materials.

Key Features

• Best-in-Class Power-to-Weight Ratio: 2.0 J impact energy in a 1.9 kg body
• 620W Motor: Optimized for fast and accurate drilling
• Overhead Debris Control: Motor cooling airflow redirects dust away from user
• AVS & Soft Grip Handle: Reduces user fatigue and increases comfort
• Safety Clutch: Protects both operator and machine from bit jamming
• Forward & Reverse Function: Enhanced control for different applications
• Ideal Drilling Range: Optimized for 512 mm hammer drilling
• 4 m Power Cable: Extended reach for flexibility on the job site

Technical Specifications:

• Article Number: 4933408070
• Blow Energy (EPTA): 2.0 J
• Full Load Hammer Action: 0 4400 bpm
• Full Load Speed (Soft Hammer): 0 2700 rpm
• No Load Speed: 0 3700 rpm
• Power Input: 620W
• Tool Reception: SDS-Plus
• Vibration Drilling: 10.2 m/s
• Weight: 1.9 kg
• Standard Equipment: Additional handle, depth gauge
• Supplied In: Kitbox

Max. Drilling Capacities:

• Concrete: 20 mm
• Steel: 13 mm
• Wood: 30 mm

The Milwaukee PLH 20 20mm 620W SDS-Plus L-Shaped Fixing Hammer Drill is engineered for precision and comfort in overhead and tight-space drilling tasks. Weighing just 1.9 kg, it delivers 2.0 J of impact energy, providing an optimal power-to-weight ratio. The compact L-shaped design, combined with Milwaukee’s Anti-Vibration System (AVS) and ergonomic soft-grip handle, ensures reduced user fatigue during extended use. Key features include a 620W motor, variable speed control up to 3,700 RPM, forward and reverse operation, and a safety clutch to protect both user and machine in case of bit jams. With a maximum drilling capacity of 20mm in concrete and optimized performance for 512mm applications, the PLH 20 is ideal for professionals seeking reliable performance in demanding environments.
