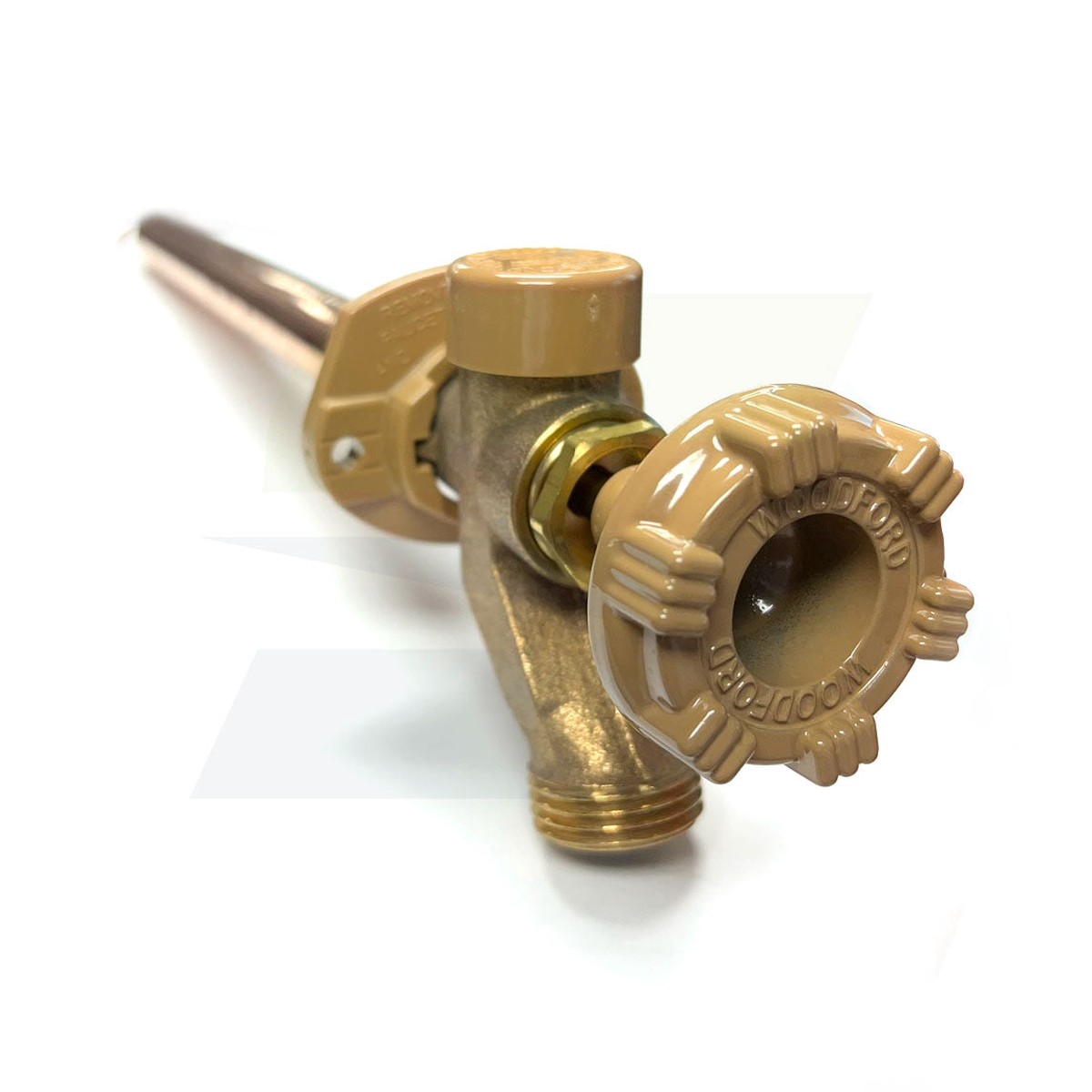

Woodford 17CP-4-MH – Model 17 – 1/2″ MPT or 1/2″ Female Sweat Freezeless Anti-Siphon Wall Faucet – 4″ Wall Thickness

The Freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker. This ASSE 1019 device is intended for irrigation use and outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.

Features

• 3/4″ male hose thread nozzle – Stainless steel seat – eliminates wire draw
• EPDM packing to prevent leaking – Full circle operating threads on valve body and retainer
• No-lead solder – Standard “O” size seat washer
• Powder-coated, die cast aluminum handle – Optional Tee Key available (extra charge)
• Adjustable polycarbonate wall flange-MAX PRESSURE-125 p.s.i.-MAX TEMPERATURE-120 Degree F
• Combination Inlet: 1/2″ Male Pipe Thread or 1/2″ Female Sweat

PVZ1000037
