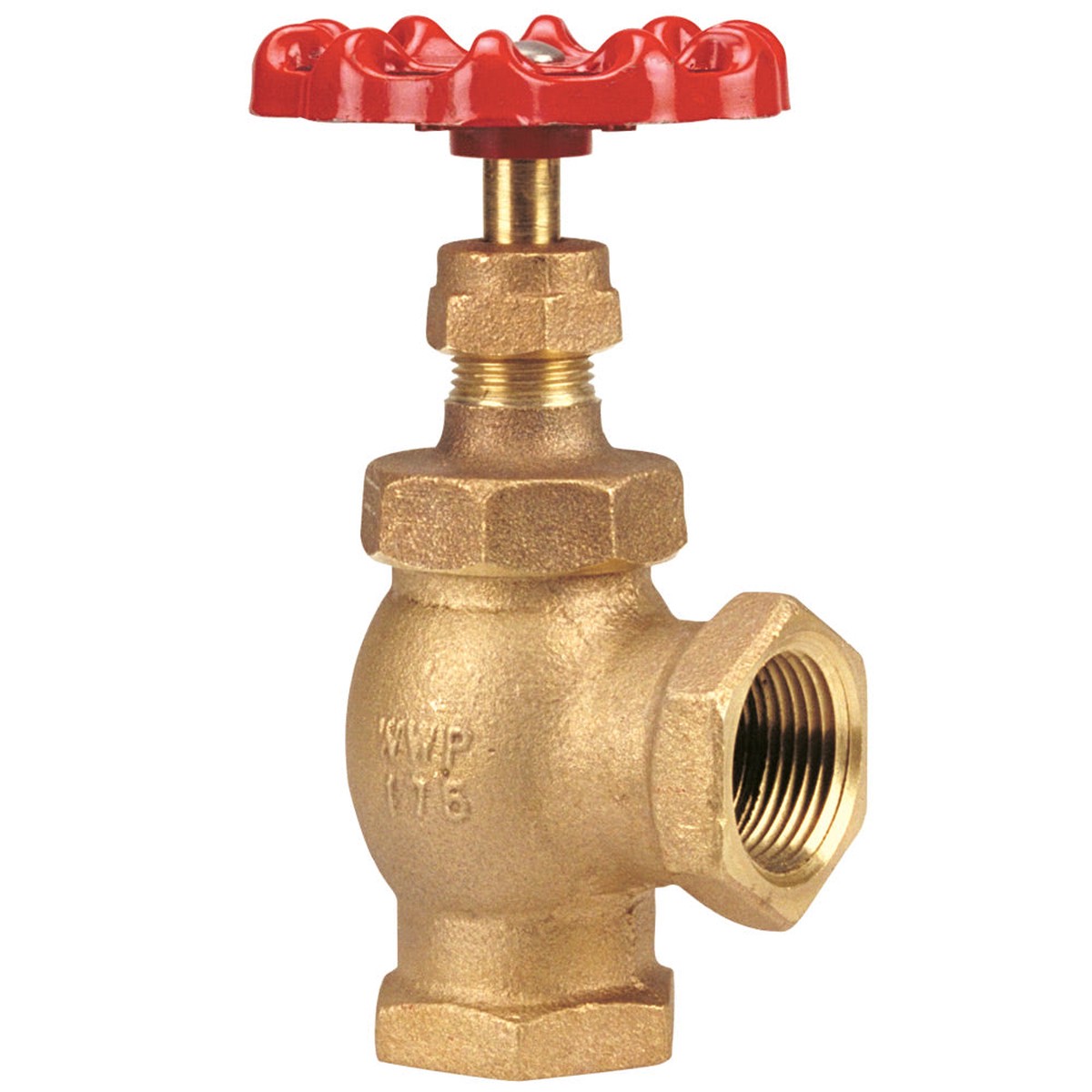

NibcoN546A18 – Screwed Angle Valve – 3/4″, Bronze

The NIBCO bronze angle 175 PSI WWP valve features a screw-over bonnet with integral seat and renewable seat disc. The seat disc features Buna-N material. It is equipped with female threaded ends for ease of installation. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO globe valves for the most specified, versatile and economical valve option in fire protection applications. NIBCO globe valves are backed by the NIBCO 5-year 125% limited warranty.

• 175 psi/12.1 bar non-shock water working pressure (WWP)
• Integral seat
• Screw-over bonnet
• Renewable seat disc
• Class 125 threaded end connections
• Dezincification resistant
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Listed by Underwriters Laboratories for trim and drain (UL258)
• Potable Water Code:Not LL Comp not intend potable
• Classification: Bronze Angle Valves
• All Basic Material: Bronze
• Type of Valve:Angle Valve
• Nominal Size 1:3/4 in.
• Seat Seal Material:Buna-N Nitrile Rubber
• Valve End Connection Type:T — Female NPT Thread (FIPT)
• Valve Multi Turn Operator:Standard Handwheel
• Valve Multi Turn Bonnet Design: Screw-over Bonnet
• Valve Pressure Rating (WWP):175 PSI / 12.1 Bar WWP
• Turns Operations:Multi-Turn
