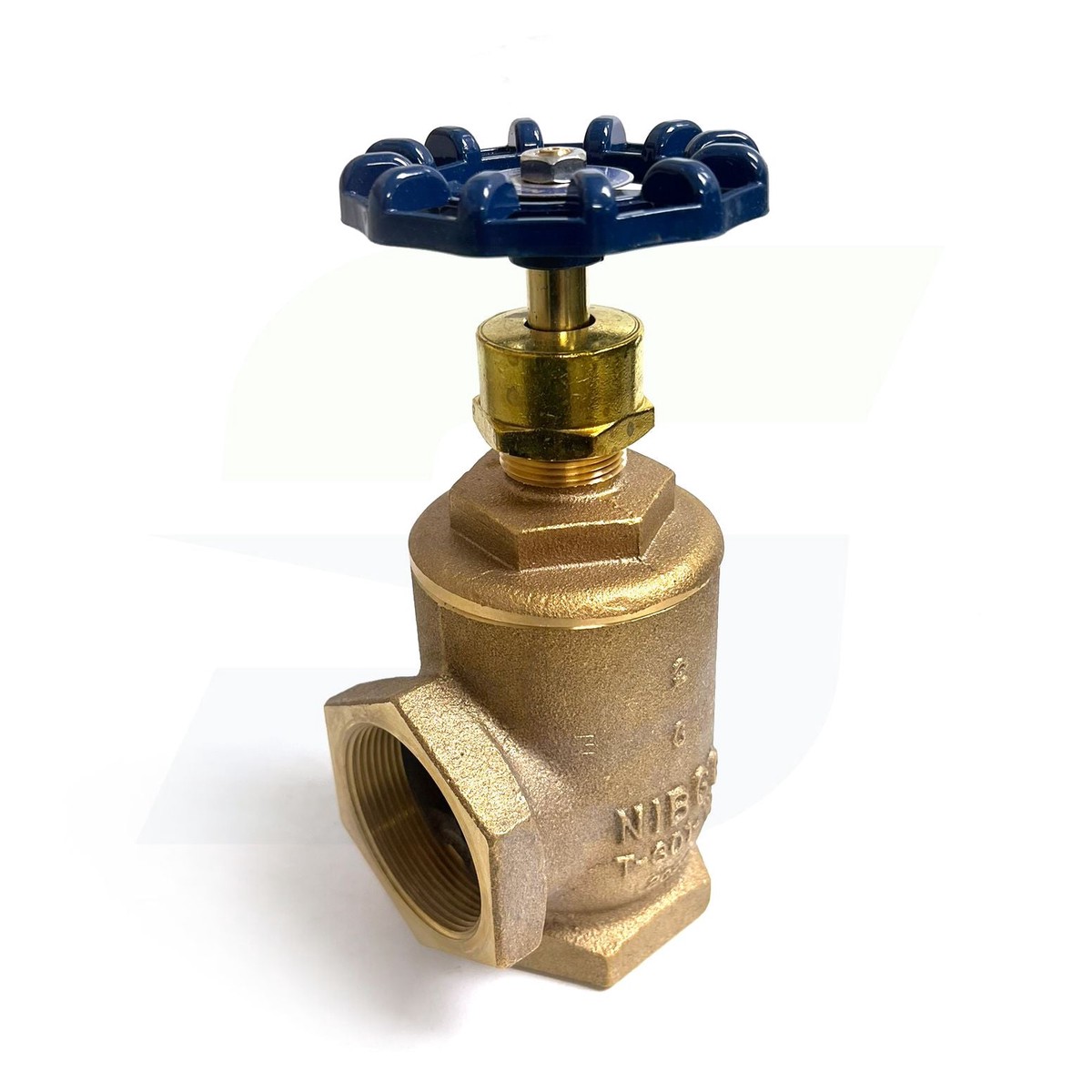

Nibco NL4BA0D – Screwed Angle Valve – 2″, Bronze

The NIBCO bronze angle globe 175 PSI WWP valve features a screw-in bonnet with integral seat and renewable Buna-N seat disc. It is equipped with female threaded ends for ease of installation. It is usually used as the main drain in a fire protection system.

Features

• 175 psi/12.1 bar non-shock water working pressure (WWP)
• Integral seat
• Screw-over bonnet
• Renewable seat disc
• Class 125 threaded end connections
• Dezincification resistant
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Listed by Underwriters Laboratories of U.S. and Canada for trim and drain (UL258)
• Potable Water Code:Not LL Comp not intend potable
• Classification: Bronze Angle Valves
• All Basic Material: Bronze
• Type of Valve:Angle Valve
• Nominal Size 1:2 in.
• Seat Seal Material:Buna-N Nitrile Rubber
• Valve End Connection Type:T — Female NPT Thread (FIPT)
• Valve Multi Turn Operator:Standard Handwheel
• Valve Multi Turn Bonnet Design:Screw-in Bonnet
• Valve Pressure Rating (WWP):175 PSI / 12.1 Bar WWP
• Turns Operations:Multi-Turn
