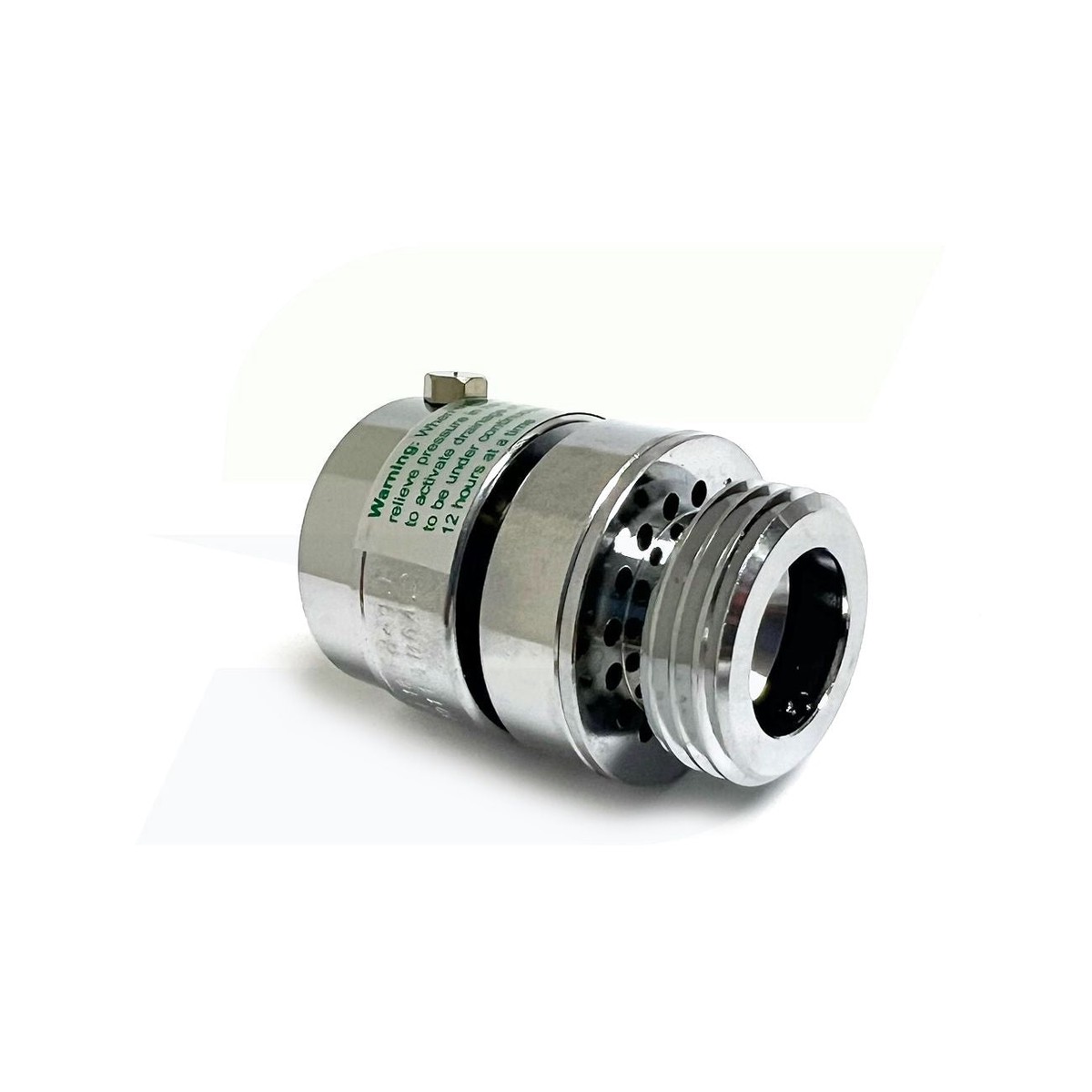

Arrowhead Brass PK1390 – Self Draining Vacuum Breaker – Chrome – 3/4″ Female Hose Thread

The Arrowhead Brass PK1390 series is a lead-free self-draining vacuum breaker that is nickel-plated with a fine thread inlet that protects your household water supply from back-siphonage.

Arrowhead Brass Self-Draining Vacuum Breakers are made of Lead-Free brass and provide protection against back-flow caused by back-pressure siphonage while also allowing water inside the valve to drain upon shut off, providing protection from freezing. Arrowhead Brass Self-Draining Hose Vacuum Breakers are available in brass and polished chrome finishes and includes a breakaway set screw for permanent installations.

Features

• Made from heavy-duty lead-free brass alloy, nickel-plated finish
• Protects your water supply from back-siphonage and back-pressure contamination.
• Self-Draining feature allows water to drain out upon flow shut off and prevent damage from freezing water.
• Lead-free brass construction. NSF/ANSI 372 certified Lead-Free by IAPMO.
• Breakaway set screw for permanent installations.
• Used for repair of wall hydrants with factory-installed back-flow preventer
• Inlet connection: 1-1/16″ fine thread
• Outlet connection: 3/4″ male hose thread (MHT)
• ASSE 1011 Certified
• Lead-free Certified to NSF/ANSI 372 (by IAPMO)
• 3-year limited warranty
• Max pressure: 125 PSI
• Max temperature: 180 degrees F
