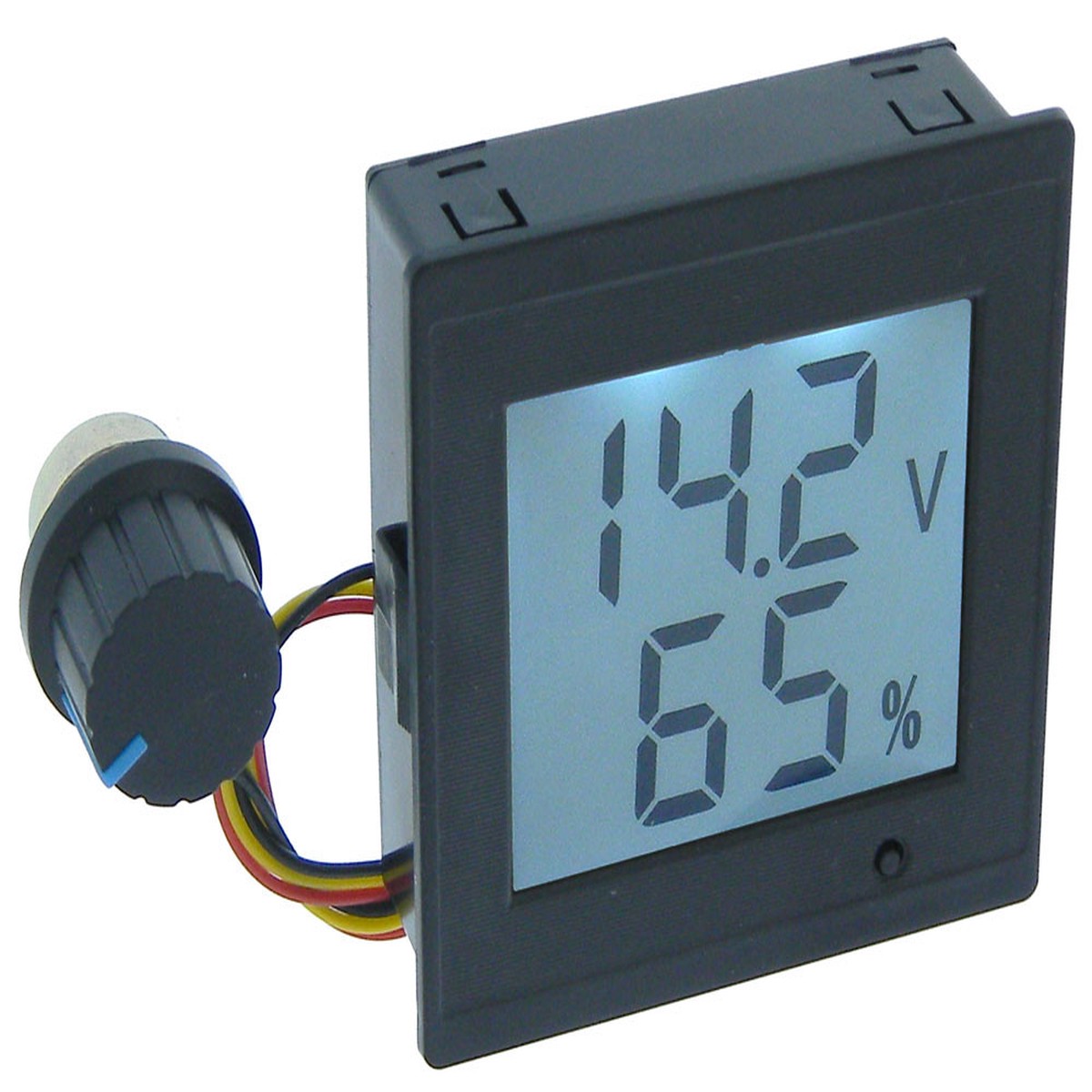

PWM DC Motor Speed Control with %, PWM, Volts, or CurrentAdditional Notes:* Unidirectional PWM DC Motor speed control with LCD Display (%, Voltage or Current), external control.* NOTE: To Reverse Motor requires an external Reversing Switch (NOT Supplied)* Displays: % Speed & Motor Voltage or % Speed & Motor Voltage at push of a button.* Linear output 0-100% of motor RPM* Input Voltage: 12-36VDC* NOTE: Should be the same as Motor* Continuous Current: 5 Amps* Surge Current: 8 Amps max* PWM Frequency: 15kHz* Voltage Measurement Range: 12-36VDC* Current Measurement Range: 8 Amps Starting current* Min: 0.1A* Accuracy: 5%* Control: 100k ohmVariable Resistor* Display: 41mm x 48mm LCD* Connections: Motor & Power: Terminal Strip* Potentiometer: 6in Hard Wired* Cutout: 63mm * 63mm* Dimensions (WxHxD) 68mm x x68mm x 22mm (2-5/8″ x 2-5/8″ x 7/8″) MPJA38180 MD
