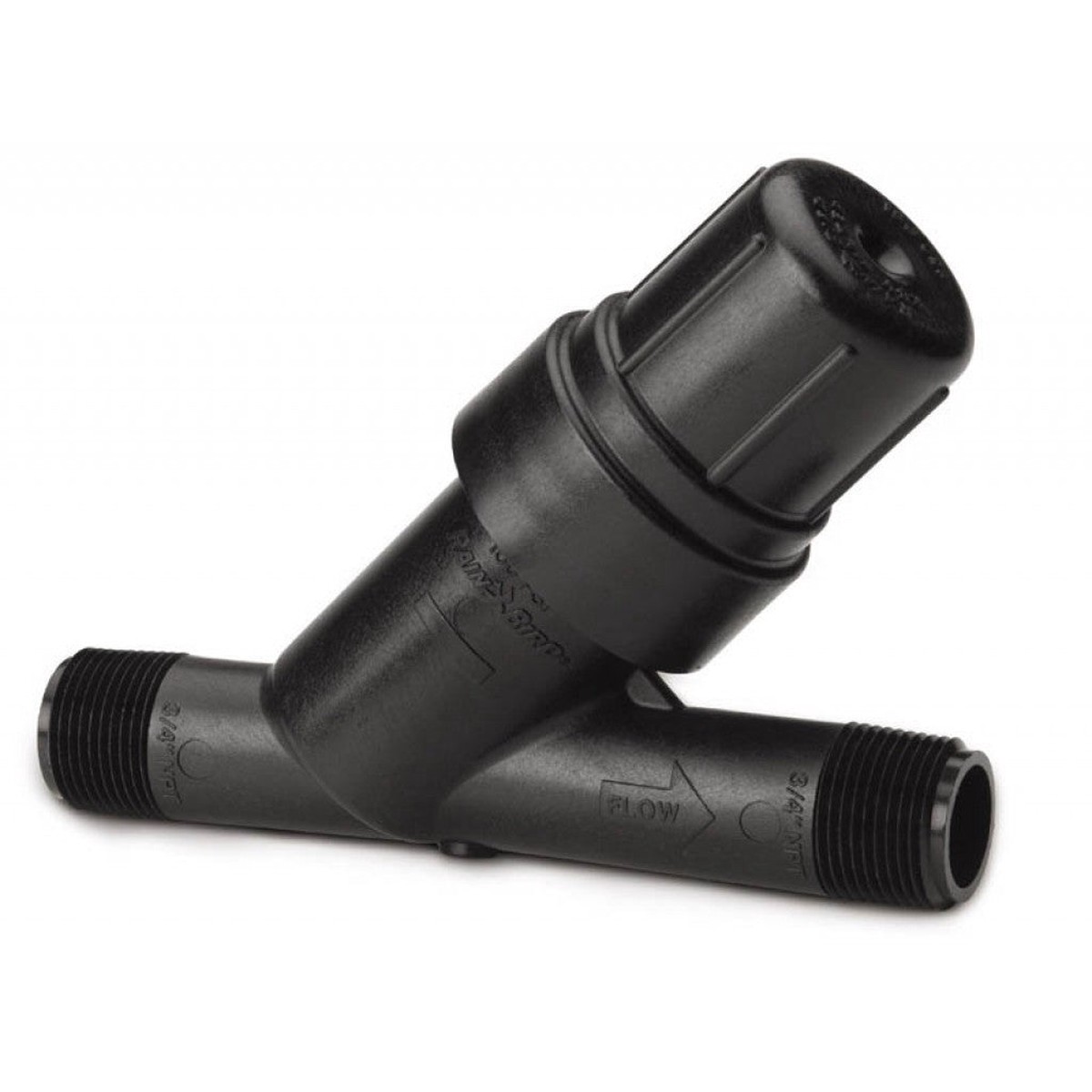

Rain Bird RBY100MPTX 1″ Inline RBY Filter with 200 Mesh Screen

Static filter helps prevent plugging in a drip irrigation system.Simply connect the RBY Pressure-Regulating Filter into the water line and use Easy Fit Fittings or a female adapter to connect to drip tubing

Features

• A simple and reliable filter for low-volume irrigation systems
• Can be installed above or below grade
• Simple to clean, as cap has a sealing O-ring and unthreads to provide access to the stainless steel filter element
• Strong and reliable due to its robust design and glass-filled polypropylene construction
• Male x Male threaded connections for direct connection to valves and pressure regulators
• Replacement stainless steel elements are available in 200 mesh (75 micron)
• Flow: 0.20 to 18.0 gpm (0.8 to 68.1 l/m)
• Pressure: 20 to 150 psi (1.4 to 10.3 bar)
• Filtration: 200 mesh (75 micron)
• Replacement screen: RBY200SSMX
• Note: Filter must be installed downstream of a control valve and not under constant pressure.
