Specification Sheet

Installation, Operation and Maintenance

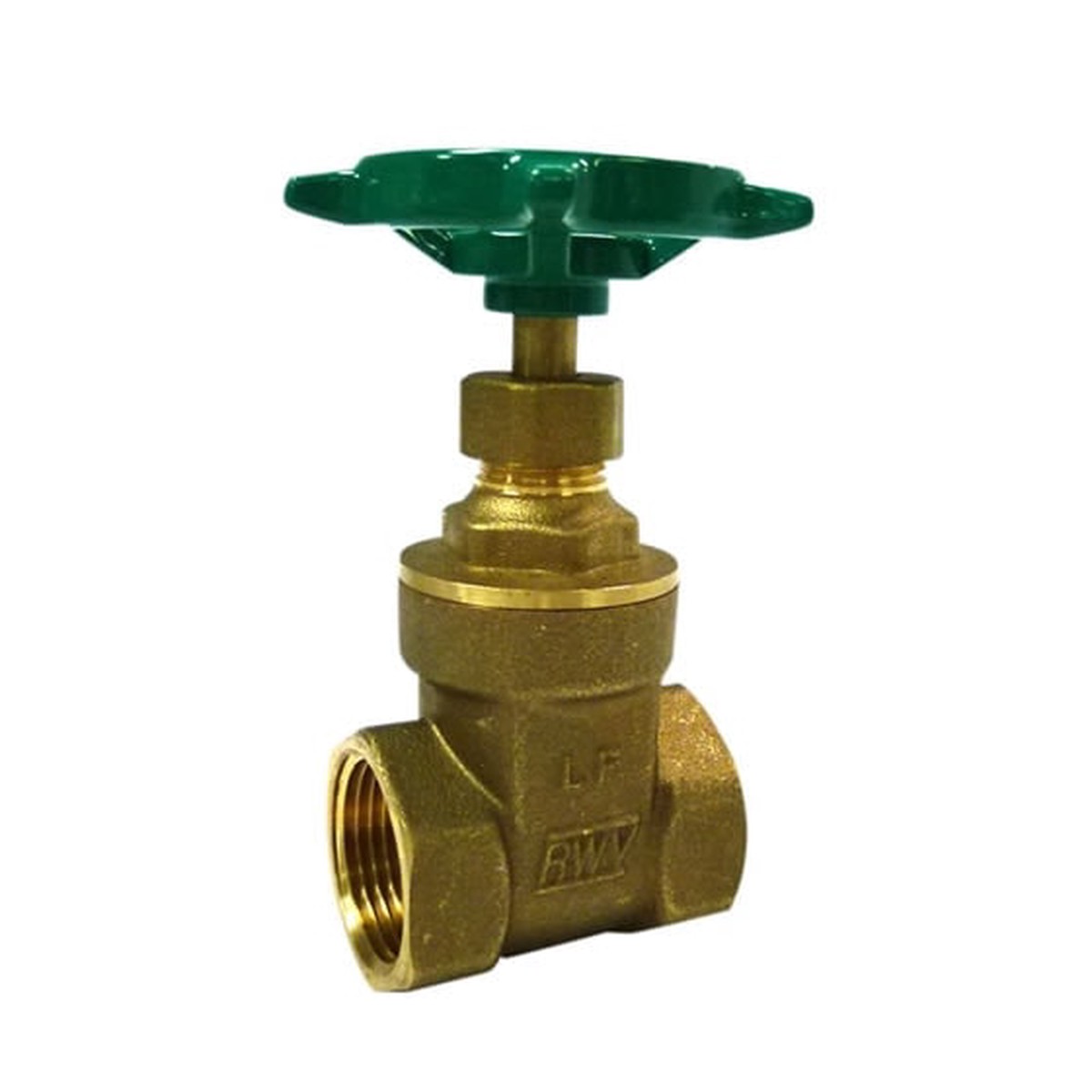

Red-White Valve – 267AB Lead Free Brass Gate Valve

Features:

• Lead Free Brass Body
• 200# WOG
• FNPT x FNPT
• Handwheel Handle
• Threaded Ends (ASME B1.20.1-NPT)
• Screw in Bonnet
• Non-Rising Stem
• Solid Wedge Disc
• AB1953, NSF/ANSI 61 & 372

Use and Maintenance

• Valves need to be operated on a regular basis (at least 6 times a year) with a complete open/close cycle. Beyond routine periodic cycling no additional maintenance is required.Valves must be replaced in case of leakages and/or damages.
• The valves have been designed and manufactured to be exclusively used as shut-off valves, therefore they shall be used in the fully open or fully closed position only. They must be operated only by acting on the handwheel provided by RWV without any other additional device.
