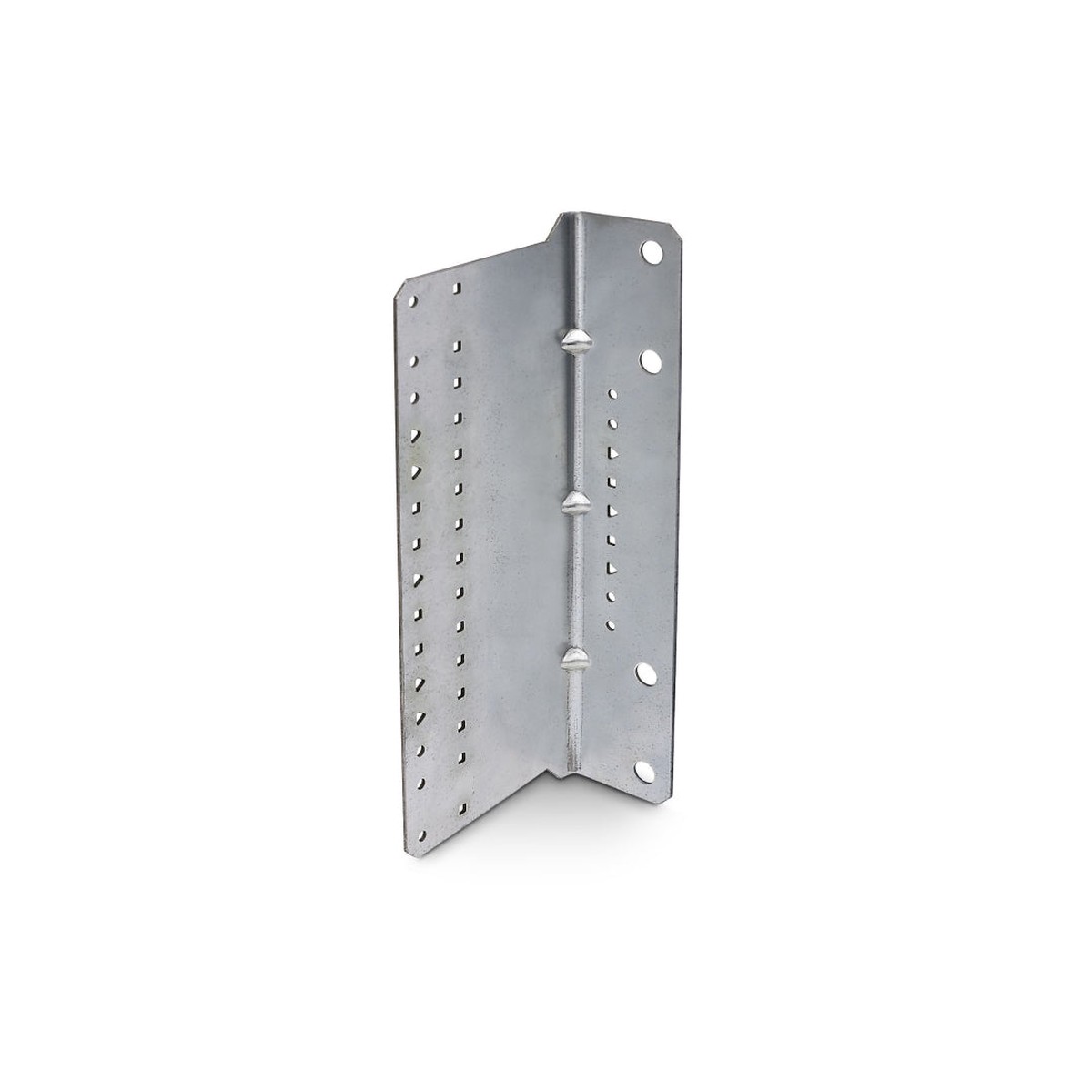

SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3 1/2″ flanges and return lips up to 3/4″. For metal-deck applications, the prepunched 3/8″ holes easily accommodate 6″, 8″, 10″ and 12″ on-center metal-deck flutes.

Key Features

• Prepunched holes reduce installation cost by eliminating predrilling
• Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4″
• 4 1/2″ leg length enables soft-side connections for joists with flanges up to 3 1/2″
• Also accommodates kicker-to-metal-deck applications

Material

• SJC 68 mil (50 ksi); MSJC 97 mil (50 ksi)

Finish

• Galvanized (G90)

Installation

• Use all specified fasteners/anchors
• For 6″ and 8″ joists: SSC connectors are recommended

Patent Information

• US Patent D730,545
