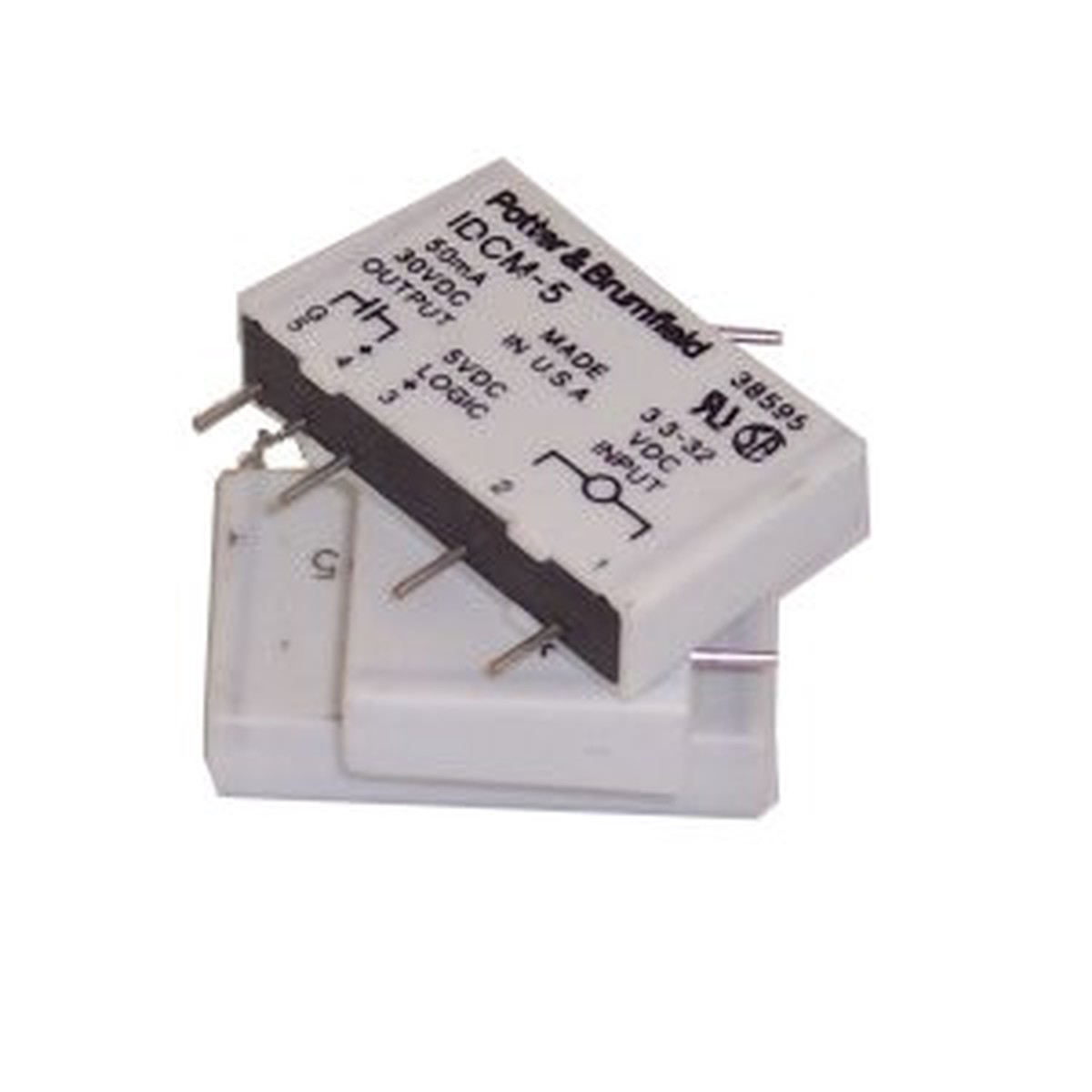

Input modules are used for sensing ON/OFF voltage levels.Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures.Industry standard package and pin-out.Color coded by function.4,000V rms optical isolation.High immunity to false operation.Series compatible.Output modules can be controlled from sinking or sourcing logic.Compatible with 2IO series mounting boardsEngineering Data (all I/O modules)Switch Form: 1 Form A (SPST-NO)Duty: Continuous.Isolation: 4,000V rms, 60 Hz.Capacitance: 8 pF Typical (input to output).Operating Temperature: -30 deg C to +80 deg C.Storage Temperature: -40 deg C to +85 deg C.Potting Compound Flammability: UL94V-0. IDCM5Product Type Features:Product Type =Input/Output ModuleTermination Type =Printed Circuit TerminalsHousing Style =Slim LineComment =Minimum Output Current >0 ACurrent Rating (Amps.) =0.05Logic Voltage (VDC) =
