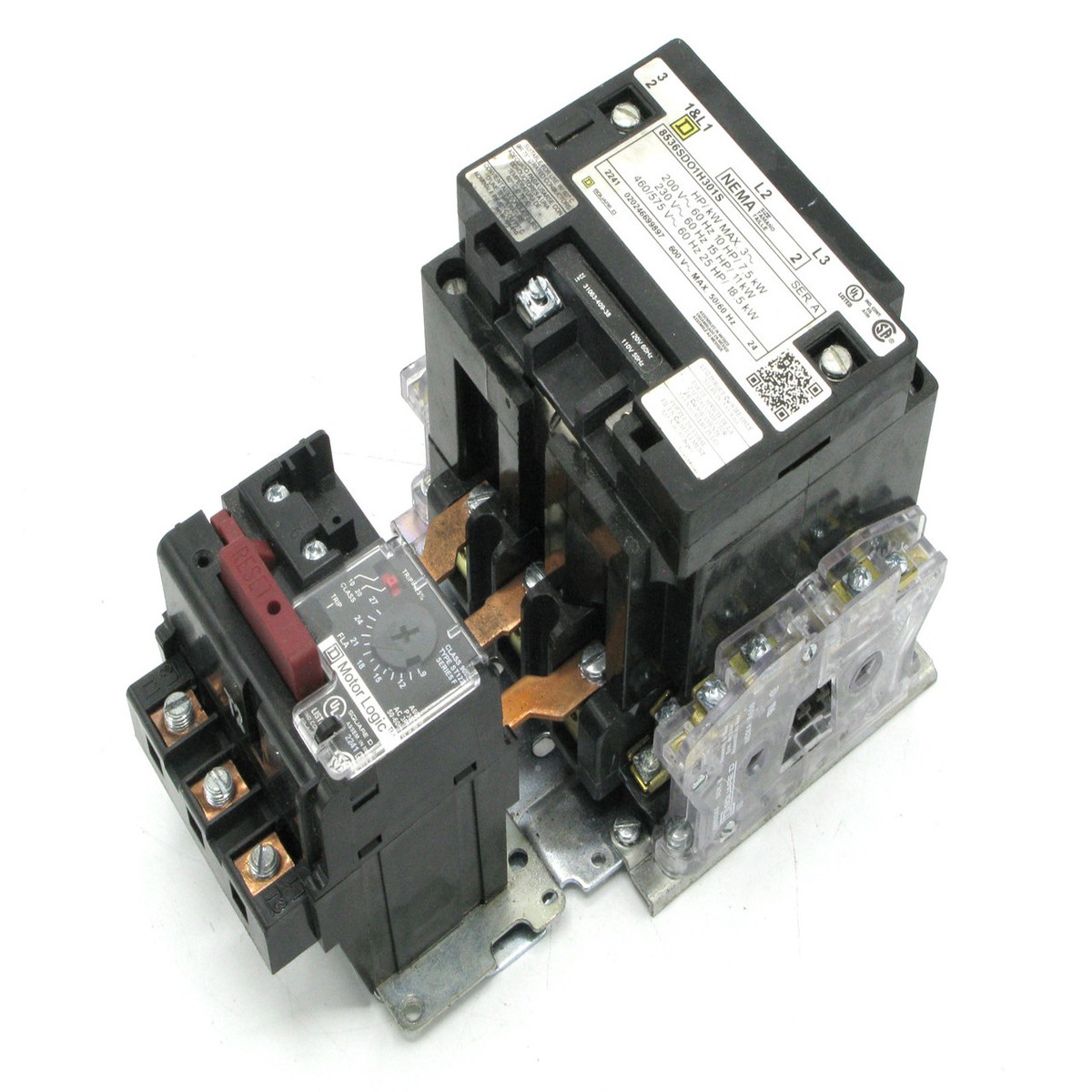

Square D 8536SDO1V01H30S NEMA Size 2, 25 HP, 45 Amps, 3-phase Motor StarterCondition:* Used, removed from service in working condition. Unable to test. As pictured.Additional Notes:* Type: Non-reversing motor starter* NEMA Size: 2* Rated Current: 45 Amps* No. of Poles: 3* Max. Voltage Rating: 600VAC* Phase: 3* Type of Overload: Solid state Motor Logic class 10/20* Power Rating: 10 HP @ 200VAC 15 HP @ 230VAC 25 HP @ 460VAC 25 HP @ 575VAC* SCCR: Circuit-breaker 100A max: 100kA @ 480VAC Fuse J 100A max: 100 kA @ 600VAC Fuse T 100A max: 100 kA @ 600VAC Fuse RK1 100A max: 100 kA @ 600VAC Fuse RK5 100A max: 100 kA @ 600VAC* Coil Voltage: 24VAC, 60Hz* Control Circuit Type: Separate control circuit* Auxiliary Contacts: Without* Terminal Type: Screw clamp terminals* Dimensions (HxWxD):7.81″ x 4.31″ x 4.94″ (198.37mm x 109.47mm x 125.48mm)* Enclosure Type: Not rated (open device)Square D8536SDO1V01H30S
