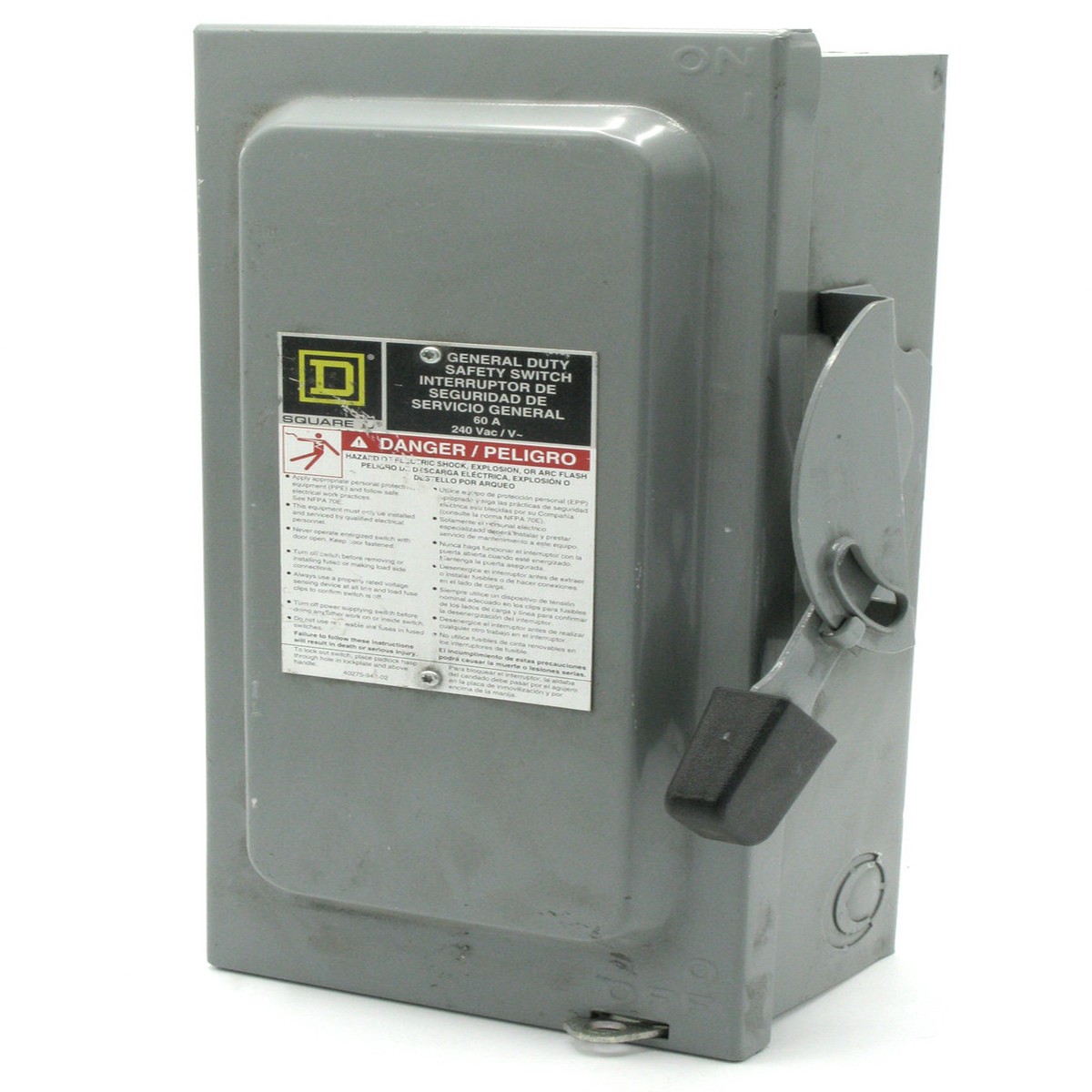

Square D D322N 240VAC, 60A, 3-pole, 15HP, Fusible Safety Switch
Square D D322N 240VAC, 60A, 3-pole, 15HP, Fusible Safety Switch
Square D D322N, Fusible Safety SwitchCondition:* Used, Removed From Service In Working Condition.* Missing Some Knockouts.* As Pictured.Additional Notes:* Single Throw Safety Switch* Duty Rating: General Duty* Device Application: Residential* Disconnect Type: Fusible Disconnect Switch* Factory Installed Neutral: Neutral (Factory...
Square D D322N, Fusible Safety SwitchCondition:* Used, Removed From Service In Working Condition.* Missing Some Knockouts.* As Pictured.Additional Notes:* Single Throw Safety Switch* Duty Rating: General Duty* Device Application: Residential* Disconnect Type: Fusible Disconnect Switch* Factory Installed Neutral: Neutral (Factory Installed)* Phase: 3 Phase* Number of Poles: 3* Current Rating: 60 Amps* Voltage Rating: 240 Volt AC* Enclosure Rating NEMA: NEMA 1* Motor Power: 1.5 HP – 120 Volt AC, 60 Hz, 1-Phase 3 HP – 120 Volt AC, 60 Hz, 3-Phase 3 HP – 240 Volt AC, 60 Hz, 1-Phase 7.5 HP – 240 Volt AC, 60 Hz, 3Phase 10 HP – 240 Volt AC, 60 Hz, 1-Phase 15 HP – 240 Volt AC, 60 Hz, 3-Phase* Fuse type: H, K or R* Mounting Type: Surface* Electrical Connection: Lugs* Wiring Configuration: 4-wire (3PH + G)* Wire Size: 12-3 Gauge Aluminium 14-3 Gauge Copper* Dimensions (DxWxH): 4.87″ x 7.45″ x 14.88″Square DD322N
