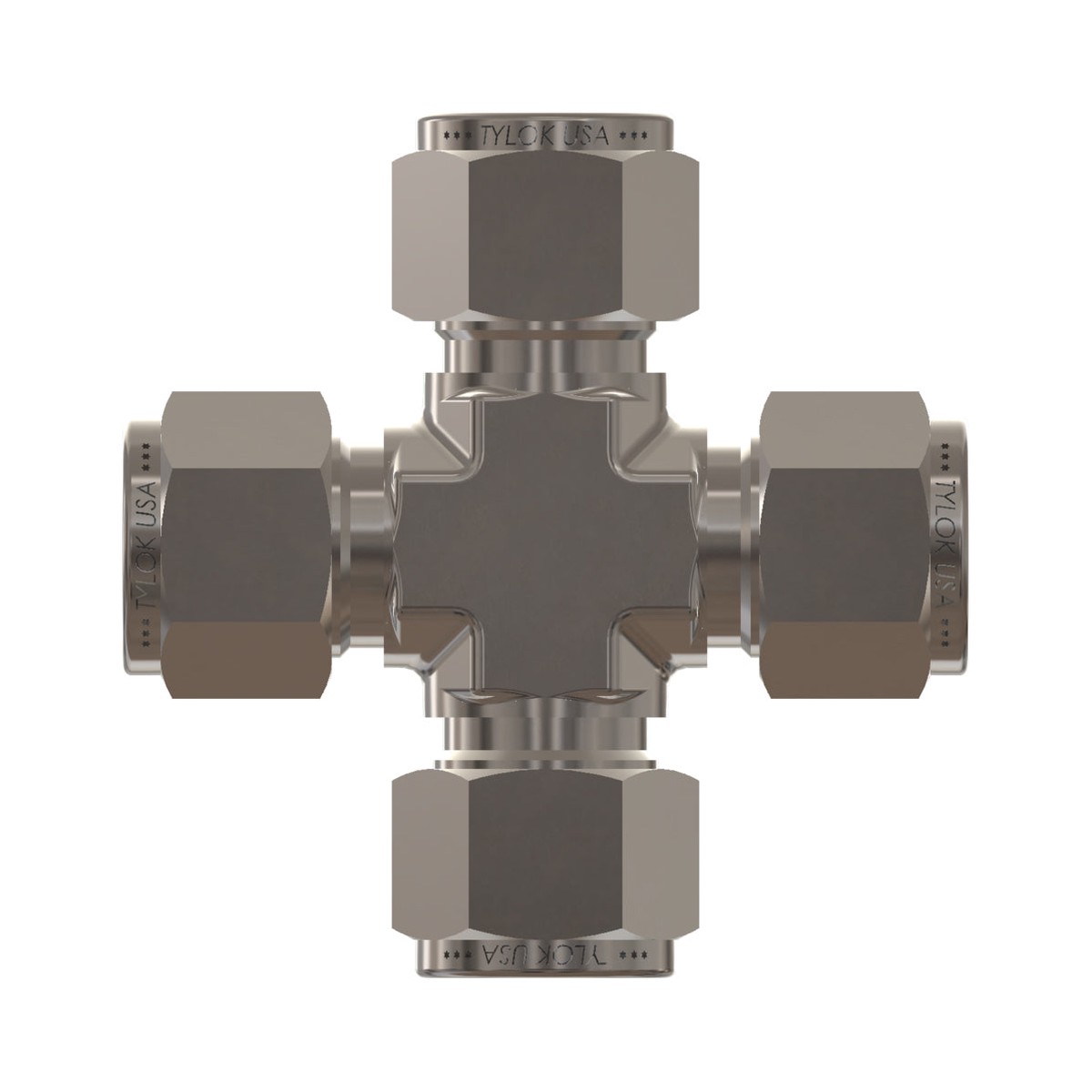

Tylok SS-4-DCR – Stainless 1/4″ CBC Tube x 1/4″ CBC Tube x 1/4″ CBC Tube x 1/4″ CBC Tube Cross

CBC-Lok Tube Fittings are comprised of four components: Body, Front Ferrule, Rear Ferrule & Nut. A leak-proof seal is obtained through proper ferrule action as the ferrules are tightened onto the tubing via axial thrust provided by the nut. The front ferrule provides the leak-proof seal, when the nut & ferrules are properly drawn up the specified number of turns. The rear ferrule grips the tubing preventing pull-off. The stainless steel nuts are silver plated and dry film lubricant is applied, reducing torque and ensuring proper sealing

Features

• Double ferrule swaging action
• Total component interchangeability
• Heat Code traceable
• ASTM material construction

About Tylok CBC-Lock Fittings

CBC-Lok Tube Fittings are fully interchangeable with Swagelok & Parker A-Lok and CS-Lok Tube Fittings are fully interchangeable with Parker CPI. Although it is always recommended to use all Tylok components intermixing Tylok bodies and/or components parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok Tube Fittings are made to strict quality control standards. Tylok Fittings are proudly made in the U.S.A.

PVZ1W00630
