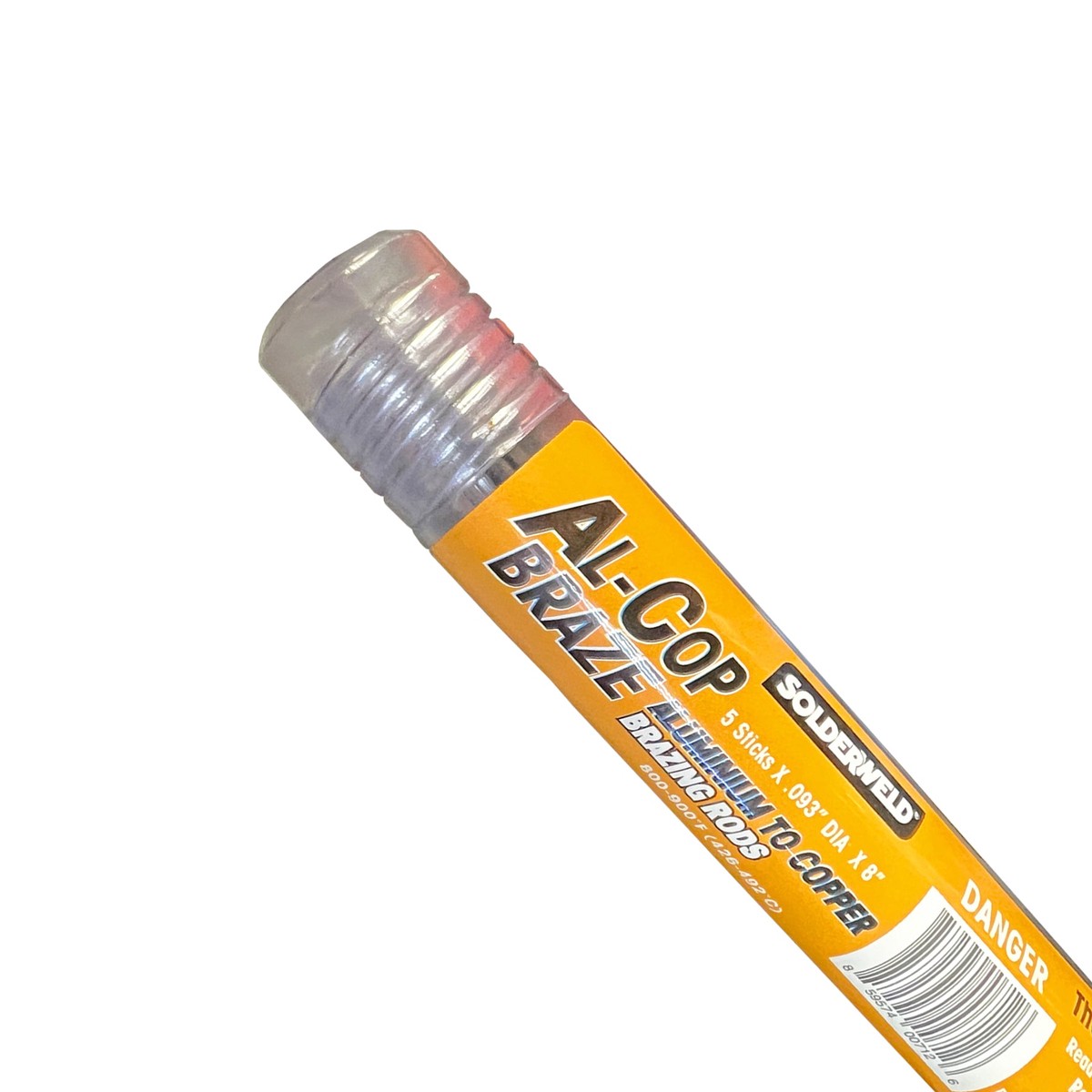

SolderWeld SW-ALCU5.5 – Al-Cop Braze Aluminum to Copper Brazing 5 Rod Pack

Al-Cop Braze is used to join aluminum and copper. It has a low melting point and narrow melt range; suitable for brazing aluminum alloys. High zinc content relative to other aluminum filler metals provides increased wetability.

Features

• HVAC applications with Brass, Copper, Aluminum and Steel
• Is effective with any of these heat sources: Oxy-acetylene torch, Natural gas torch, MAPP Gas, Induction
• Joining all brazable grades of aluminum and copper; Aluminum to Aluminum or Aluminum to Copper wire pigtail splices; Aluminum to Copper, Aluminum to Brass or plated terminals
• Solution temperature during heat treating must be below the solidus of the braze alloy in order to ensure integrity of the joint is maintained.
• Where it is desirable to attain flow into tight capillary joints
• Appearance: Silver-Colored with White Flux Channel
• Solidus: 826 degrees F
• Liquidus: 905 degrees F
• Recommended Brazing Temp: 950-1000 degrees F
• Density (Lbs/in): 0.19
• Shelf Life: 2 years at ambient temp.
• Packaging: 8.35 x.09 dia plastic tube
• Rod Length: 8″
• Package Weight: 0.08 lbs.
• Quantity per pack: 5

HPZ5000315
