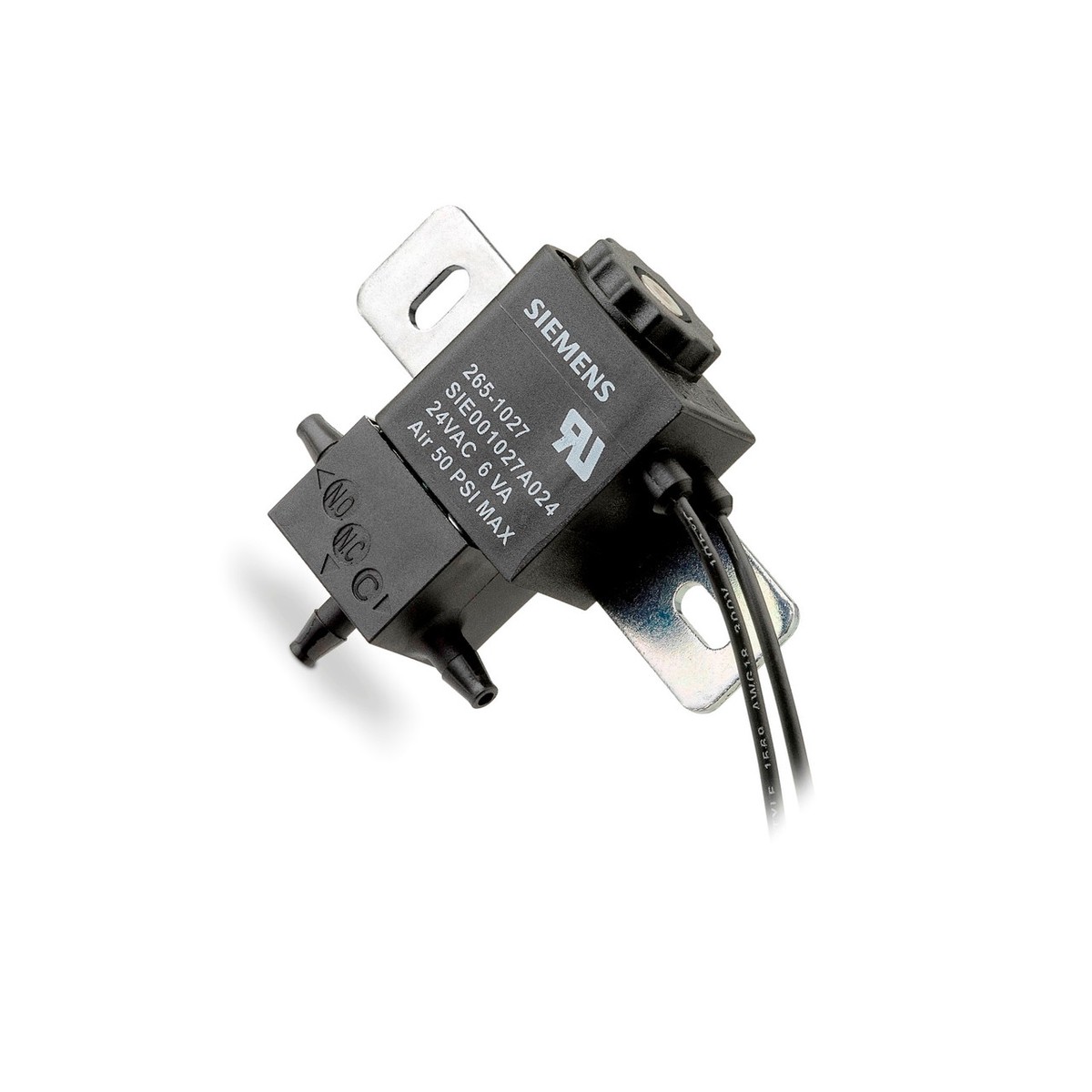

Two-position, Three-way Electro-pneumatic Valve, 24 Volt AC, 6 WattDescription:The Series 265 Electro-Pneumatic Valve is a general purpose, electrically operated, two-position 3-way open frame valve designed to control airflow.It can be used for interlock between an electrical system and a pneumatic control system.This compact, lightweight air valve has barbed, plastic tube connections marked: NC: Normally closed, NO: Normally open, C: CommonMeasures just over 2″ x 1-1/2″ x 1″ and is mounted on a 2-7/8″ x 3/4″ bracket with 3/16″ mounting holes and 5.5″ leads.Specifications:Material: Body Polybutylene Terephthalate (PBT)Internal: Glass filled thermoplastic material, stainless steel, copper, Buna NAmbient Temperature: 0 Degree F to 122 Degree F (0 Degree C to 50 Degree C)Control Fluid: Air OnlyMaximum Air Pressure: 50 psi (345 kPa)Airflow Capacity: Airflow 600 SCIM (164 ml/s) at Inlet Pressure 20 psig (138 kPa) at Differential Pressure 1 psig (7 kPa)Cv Flow Factor: 0.06Electrical Rating: Voltage 24 Volt ACRated power consumption: 6 VAAir Connections: Barbed fittings for 1/4-inch (6.4mm) OD plastic tubingFeatures:Valve may be mounted in any positionProduct Enclosure Type: Open FrameUL and cUL recognizedApplication:These valves are commonly used to alternately apply pressure to, and exhaust pressure from, pneumatically controlled devices (valves, damper actuators)This is done by an electrical input energizing or de-energizing the solenoid of the valveSimens265-1027
