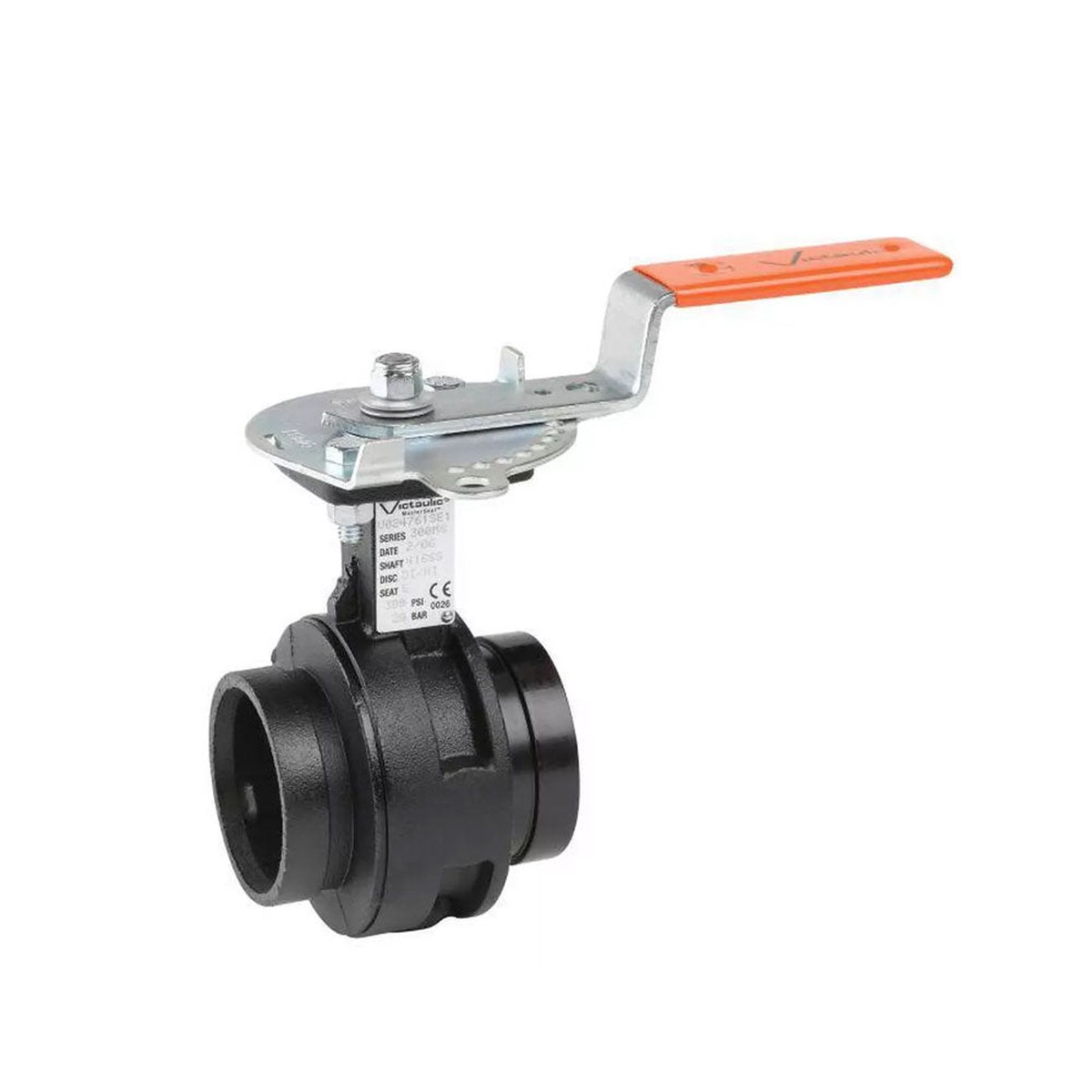

Victaulic V020761SE2 – 2″ VIC-300 MasterSeal Butterfly Valve – EPDM Seat -Lever Operator

Vic-300 MasterSeal butterfly valves are designed for pressures ranging from full vacuum to 300psi/2065kPa and for bi-directional, dead end services to full working pressure. The valve features a patented seat design that assures full 360 sealing. The pressure-enhanced seat compresses to form a larger seating area as the pressure increases. The seat design also contributes to the low breakaway torque capabilities of the MasterSeal valve.

Features

• Disc Electroless nickel coated ductile iron
• Seat Patented pressure enhanced rubber seat design
• Drive Hub Designed to accept nearly all types of actuation
• Stem Seals Prevents leakage of media
• Upper and Lower Stem Bearings Helps maintain constant low torque values for the life of the valve
• Stem Blow out proof design utilizing stainless steel
• ISO 5211 Mounting Flange Accepts ISO standard actuators
  • 2 – 8″ are flange size F07
  • 10 – 12″ are flange size F10
• Grooved End Body Reduces the weight of the valve and makes it easier to install
• Rectangular Drive Positive rectangular drive eliminates fasteners in the flow stream, design prevents replacement errors
• Seal Cartridge Patented seal cartridge houses stem seals
• Thermal Barrier – Reduces condensation on gear operators when installed in chilled water applications
