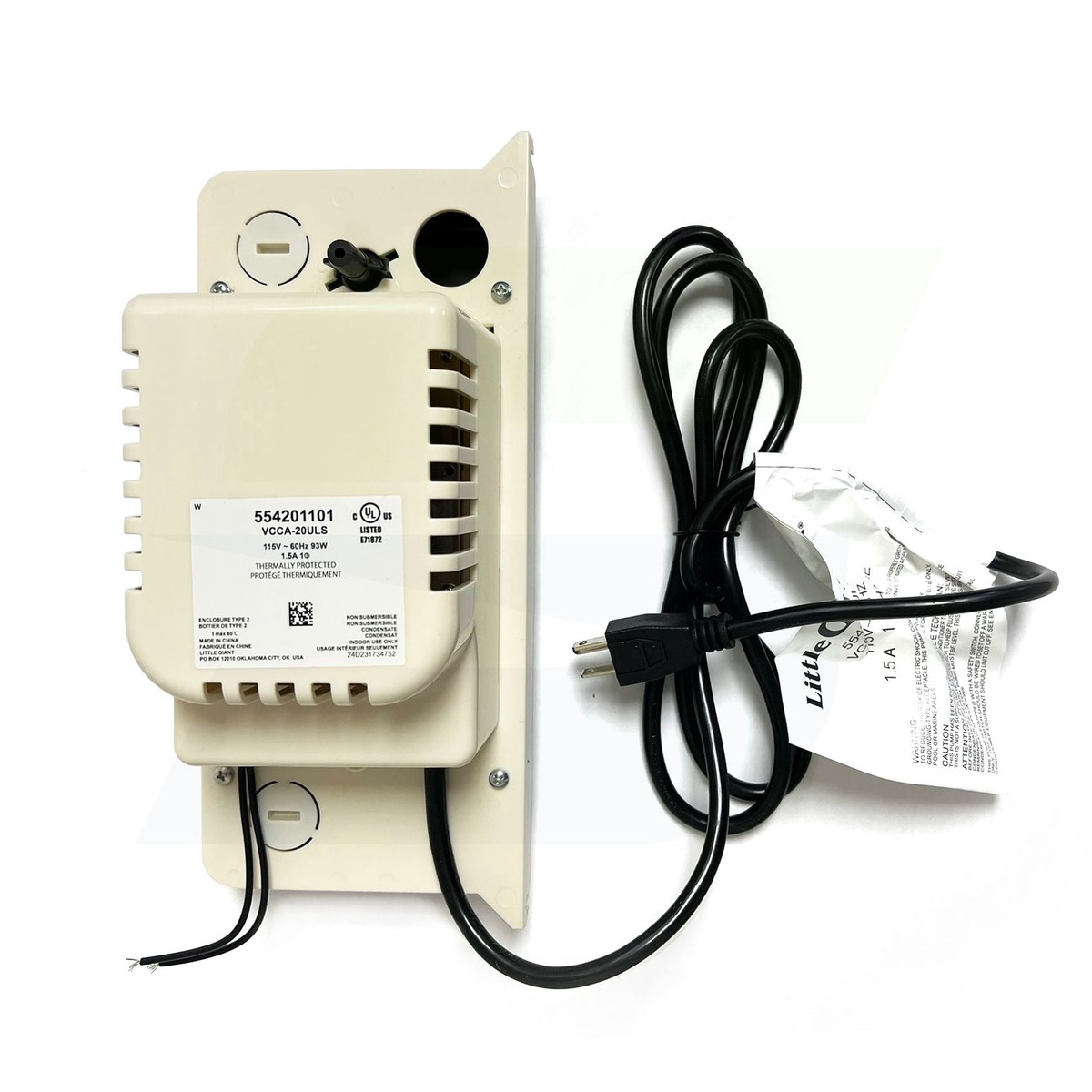

Little GIANT 554201101 – VCCA-20ULS Low Profile Tank Condensate Removal Pump With Safety Switch

The VCCA-20 Series Condensate Pump is designed for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also, suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Ideal for small spaces where condensation removal is necessary, the VCCA-20ULS boasts a compact design including a 1/2-gallon tank capacity and is equipped with a float/switch mechanism for automatic start and stop functionality. The pump also includes an auxiliary switch that is configured to open a thermostat circuit in the event of high-water level in the pump reservoir thereby stopping the production of condensate. The unit has a high-impact polymer pump base, stainless steel shaft, and ABS plastic tank cover and switch housing. This model also includes an ABS tank, motor cover, and volute with stainless steel shaft. Easy access for routine inspection and maintenance.

Features

• 1/30 hp motor
• Float switch for automatic start/stop operation
• Safety switch
• 1/2-gallon tank capacity
• Motor thermal overload protection
• Low-profile condensate pump for small spaces
• Standard Warranty: 12 Months

Specifications

• Capacity: 80 gph @ 1′
• Shut Off: 20′
• Max Liquid Temp:120 F
• Discharge: 3/8″ barbed (9.5mm)
• Impeller: Glass-filled Polypropylene
• Electrical: 115V, 60 Hz, 1.5 A
• Operation: Automatic

Electrical

• HP: 1/30 hp
• Frequency: 60 Hz
• Amps – Fully Loaded: 93 W
• Volts: 115 VAC
• Cord Length: 6 ft
• Continuous Duty: No
• Agency Approvals: CSA / UL

Operation

• Max Flow Rate – 60 Hz: 1.33 gpm / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m/h
• Flow Rate At 1ft: 1.33 gpm / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m/h
• Max PSIG: 8.6 PSI
• Shut-Off: 20 ft / 6.1 m
• Safety Switch: YES
• Max Fluid Temperature: 120F

Installation

• Discharge: 0.38″
• Product Weight: 5.4 lb / 2.45 kg
• Product Width: 5.02″ / 12.75 cm
• Product Height: 5.23″ / 13.28 cm
• Product Length: 11.96″ / 30.38 cm
• Product Weight w/ Pack: 5.4 lb / 2.45 kg
• Carton Width: 5.13″ / 13.02 cm
• Carton Height: 5.25″ / 13.34 cm
• Carton Length: 13″ / 33.02 cm
• Tubing Included: No
