Submittal Form

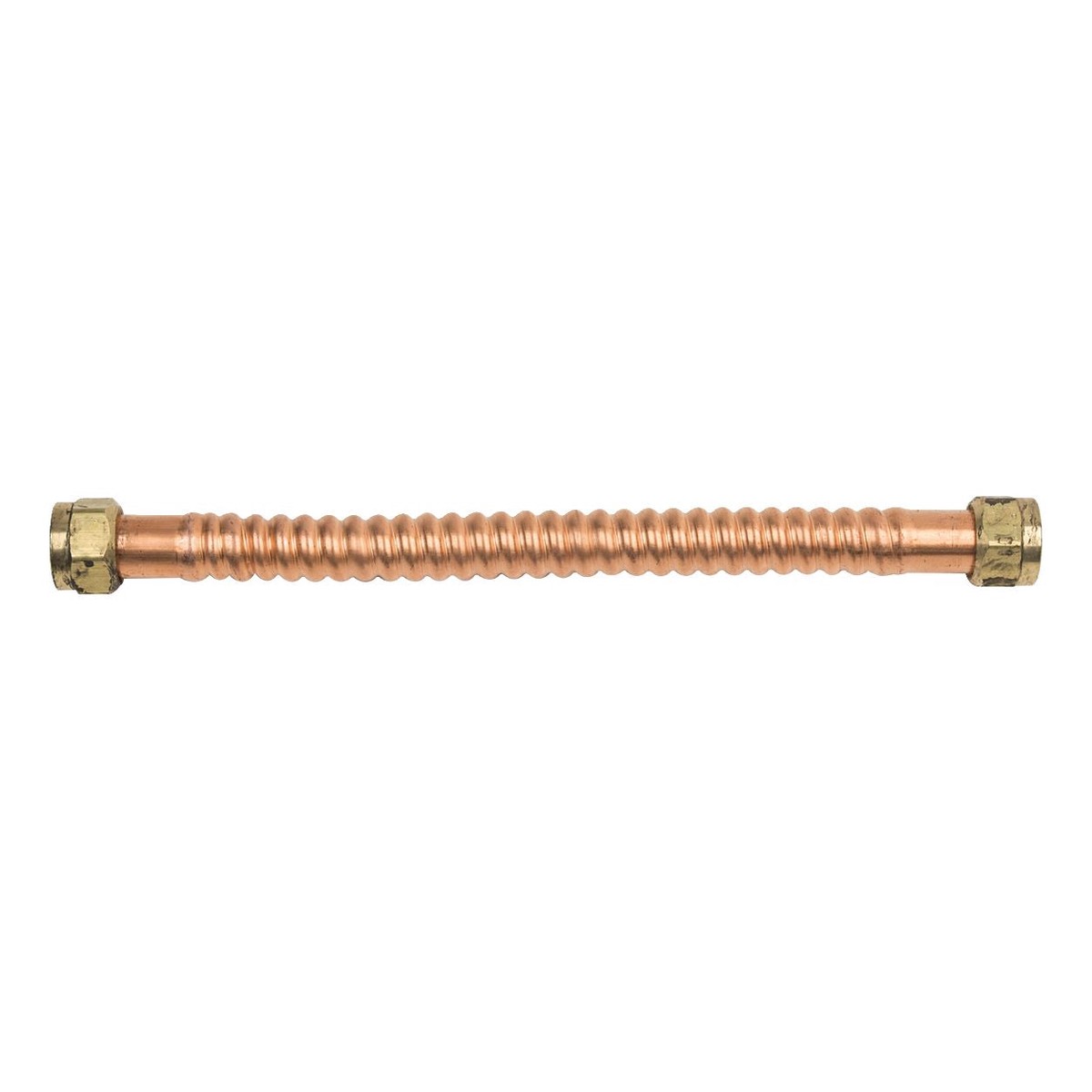

WB00 – Flexible Water Heater Connector – 3/4″ FIP x 3/4″ FIP

BrassCraft Copper-Flex 3/4″ Female Iron Pipe inlet x 3/4″ Female Iron Pipe outlet water heater connectors. Used to connect the water supply to your water heater, this connector features an integrated dielectric sleeve, the sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks.

Features

• Corrugated copper tube
• 3/4″ FIP x 3/4″ FIP
• Use with electric or gas water heaters or softeners. Use only to connect water
• For use in exposed locations only to connect water heaters and other water connected devices to the water supply;
• No dielectric union needed, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs
• For indoor use
• Temperature rating: 40 to 140 degrees F, intermittent to 180 degrees F
• Pressure Rating: water pressures up to 125 PSI maximum
• Designed, Machined and Assembled in the USA

Related Video: How to Install a BrassCraft FIP x FIP Water Heater Connector
