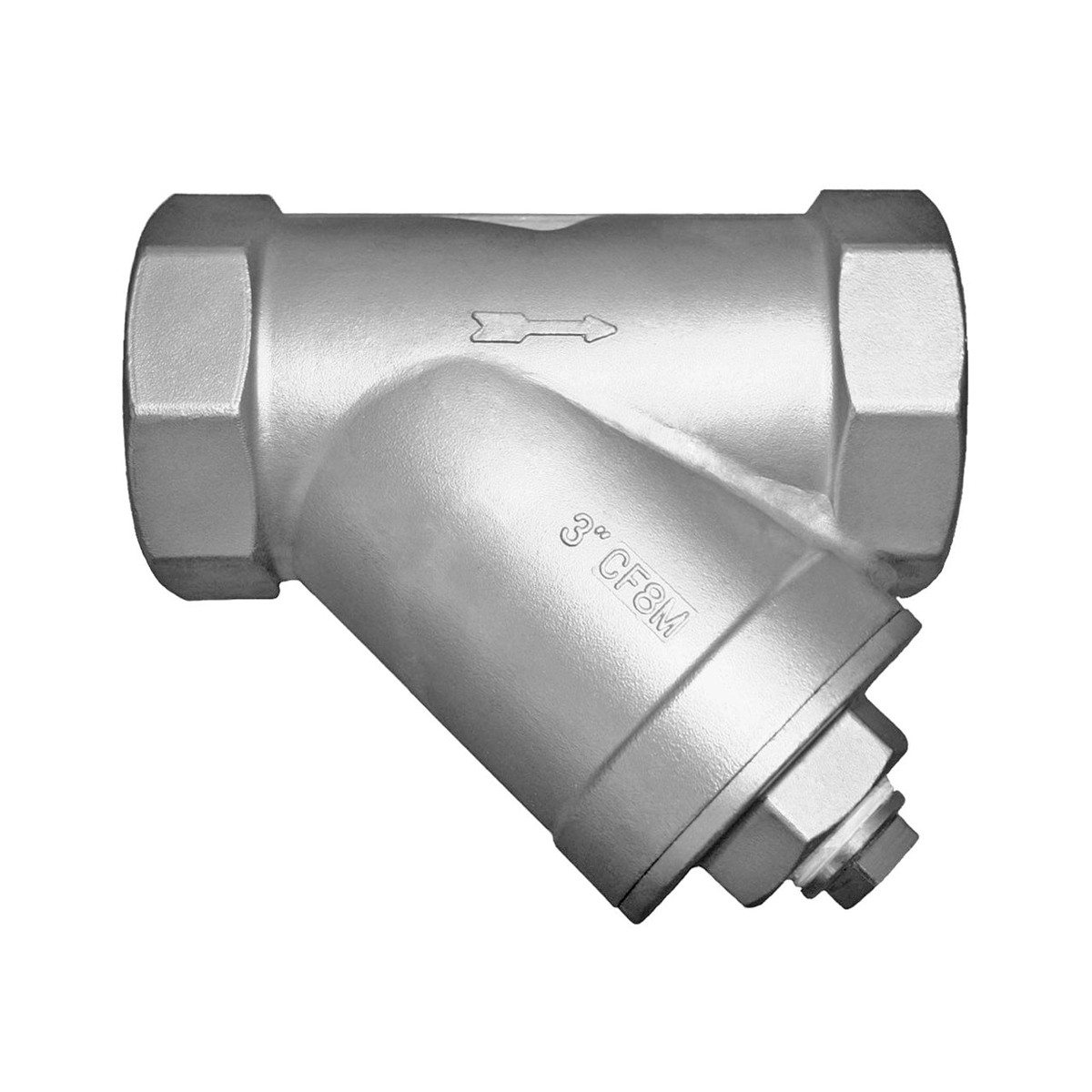

Titan YS80T-SS Stainless Steel Y-Strainer – 800 WOG – Threaded Ends

A WYE Strainer is installed into a pipeline system to remove unwanted debris from the pipeline flow by utilizing a perforated or mesh lined straining element. WYE Strainers remove only insoluble floating impurities with the most common range of particle retention ranging from 1 inch to 40 micron (.0015 inch).

Features

• Large Straining Capacity – With its large body and sizeable straining element, the YS80T provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline, minimizing pressure drop across the valve.
• Precision Machined Seats – Precision machines screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also, the machined body seats enable finer filtration by preventing debris bypass.
• Threaded Cap – Titan unit YS80T has straight threads to permit easy cap removal for cleaning and proper alignment when reassembling strainer.
